IoT Pressure Monitoring Terminal
IoT Pressure Monitoring Terminal
Product Overview

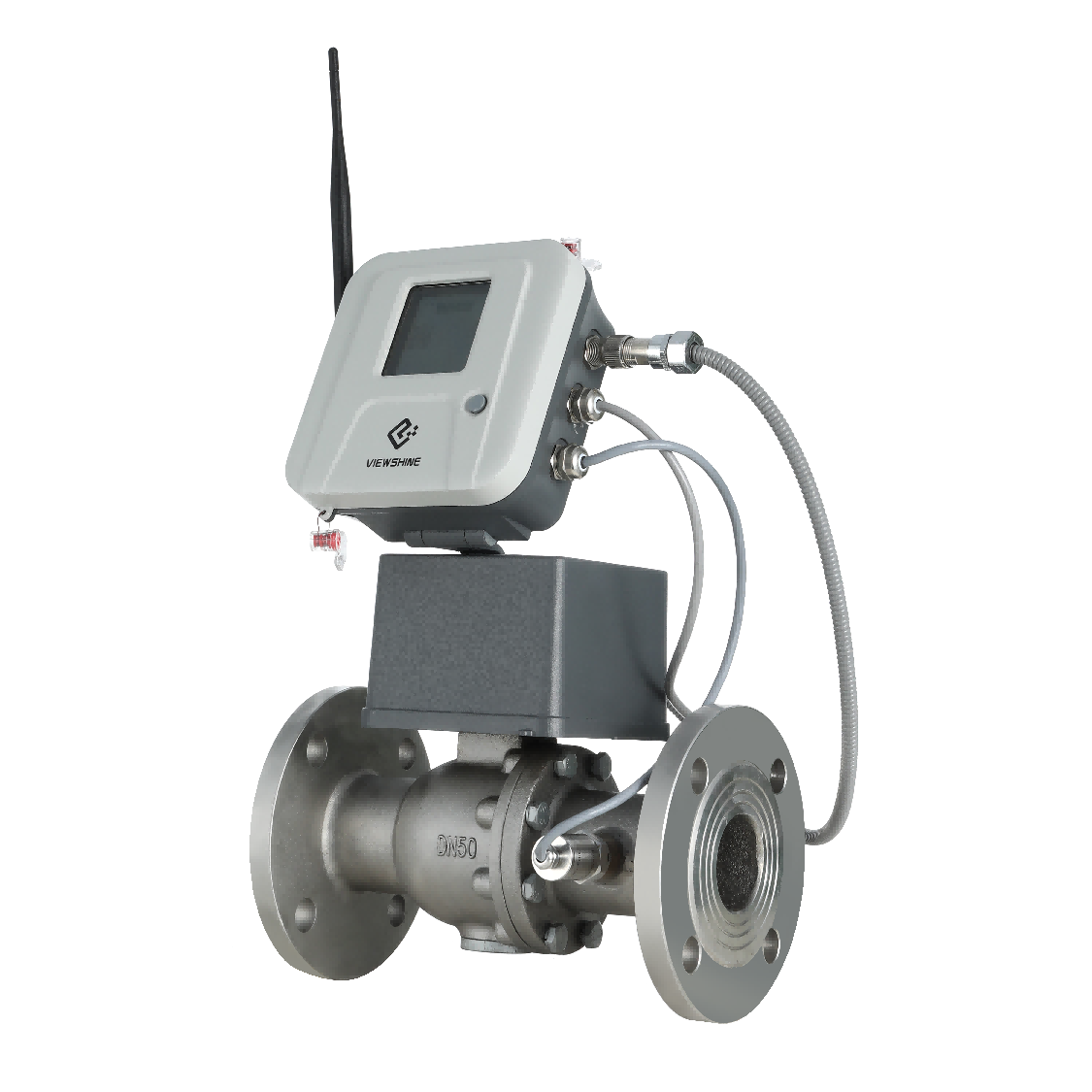

The Piaomiao Peak Technology IoT Pressure Monitoring Terminal integrates sensors and smart meters with pipeline valves, supporting threaded or flanged connections. It is an intelligent data recording and control unit designed specifically for pressure monitoring of low-pressure segments in residential natural gas distribution pipelines within urban communities.
Get Started
Our expert team will provide you with detailed product information and solutions.
Contact a Product ConsultantStandard
- GB/T25480-2010 Basic environmental conditions and test methods for transportation and storage of instruments and meters
- GB/T34073-2017 Specification for IoT Pressure Transmitter
- JJG882-2019 Pressure Transmitter
Key Technical Specifications
| Pressure Range | 0~1 kPa |
| Pressure Type | Gauge Pressure |
| Accuracy Class | 0.5%FS |
| Power Supply | 7.2V |
| LCD | Dot matrix LCD (supports pressure curve display) |
| Communication Method | LTE |
| Explosion-proof rating | Ex ib IIB T4 Gb |
| Protection Rating | IP65 |
| Lifespan | ≥3 years (appeal frequency: once daily) |
